Press Brake Tooling Maintenance and Storage: Protecting Die Accuracy

When bend angles start drifting, the first suspect is usually the machine. In most shops the real cause is the tooling — a punch tip that has rounded, a die shoulder that has worn, or a set that has been dropped and quietly put back on the rack.

Tooling accuracy degrades slowly and invisibly. That is what makes it expensive: by the time the problem surfaces as scrap, the cause has been present for weeks. This article covers how to handle, store and inspect press brake tooling so that accuracy is maintained rather than restored.

Why tooling condition is the hidden variable

Bend angle is the result of the punch, the die, the material and the machine working together. The machine’s position and the part’s material are obvious variables, and both are usually monitored. The tooling sits between them and is often taken for granted.

Two consequences follow. First, a worn die changes the effective geometry of the bend, so the machine has to be programmed to a different depth to produce the same angle — and eventually it cannot. Second, when tooling wear is discovered late, the fix is usually to compensate elsewhere: adjusting the machine to suit damaged tooling, which masks the problem and spreads it to other jobs.

Regular inspection is not administration. It is the mechanism by which bend accuracy stays predictable.

Handling: the majority of tooling damage happens in transit

Most tooling damage is not caused by bending. It is caused by moving, dropping and stacking.

• Never let a punch fall. A punch tip is a precision edge. A drop onto a concrete floor will deform it, and the deformation may be invisible on the rack.
• Do not use punches as levers or drifts. They are not pry bars, and the load they are designed for is distributed, not point-loaded.
• Use a proper handling aid — a tooling cart or trolley sized to the tooling lengths you own. Carrying long segments by hand across the shop is where most damage happens.
• Keep segments of a set together. A punch set used as a matched pair with a die should stay paired; mixing worn and unworn segments produces inconsistent bends across the part.
• Do not stack tooling directly on the floor or on machine beds. Even a clean floor is a risk; the shop floor is where swarf and offcuts live.

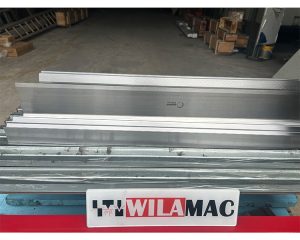

Storage: build the rack around the tooling system

Storage is a specification, not an afterthought. A rack designed for the tooling you own prevents most of the handling damage described above.

Practical requirements:

• Dedicated, labelled positions for each tooling system and length, so an operator can see at a glance what is available and where it belongs
• Vertical storage for long punches where possible — it reduces the footprint and, more importantly, keeps the working edge away from contact with other items
• Segment trays for partial-width pieces, with the set’s identity marked on the tray, not just on a single segment
• Protection from moisture. Tooling is ground steel; a humid workshop will rust it. Keep long-term storage away from wash bays and areas with temperature swings, and apply a protective film where tooling will sit unused
• Separation of new and worn stock. Worn tooling kept in the same rack as good tooling will eventually be used by mistake
• A quarantine area for anything damaged, so it is removed from circulation the moment it is identified rather than at the next inspection

If you run more than one tooling system, keep the systems in clearly separate zones. Confusion between systems is a setup error that produces scrap before anyone notices.

Inspection: what to look for and how often

Tooling inspection should be routine and quick, not a project. What you are looking for:

A useful discipline is to check tooling whenever a job with a tight angle tolerance is scheduled. That way inspection is tied to consequence: it happens when it matters, and it takes minutes rather than becoming a monthly backlog.

For the straightness check, a straight edge and a clean surface will reveal more than a visual inspection alone. A punch that rocks is a punch that will bend inconsistently along the part.

Cleaning and rust prevention

• Wipe tooling down after use to remove swarf and residue; a clean cloth, not an abrasive
• Do not use abrasive pads on working faces — they alter the geometry you are trying to preserve
• Apply a light protective film before long-term storage, and reapply after any cleaning that removes it
• Keep the storage area dry; if your workshop is humid, address humidity as a maintenance item rather than treating rust as inevitable
• Handle tooling with gloves for the same reason you protect any precision surface — skin contact leaves residue

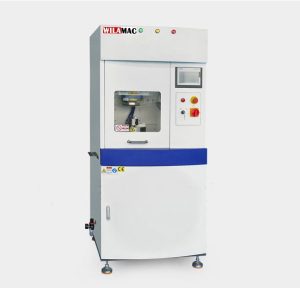

When to regrind and when to replace

Not every worn tool should be sent for regrinding. The decision depends on what regrinding does to the geometry.

Regrinding is generally appropriate when: the working profile is worn or rounded but the body is sound, the loss of dimension can be accommodated in your bend calculations, and the tooling is part of a matched set that can be reground together.

Replacement is generally the better answer when: there is cracking or chipping, the tool has been reground previously and further material removal would compromise the profile, the die shoulder has lost its specified radius, or the tooling has been dropped in a way that changed its straightness.

Two rules keep this manageable. Regrind matched sets together, never a single segment out of a set. And record what has been reground and when — knowing a tool’s service history is the difference between a planned replacement and an emergency order.

A shop-floor checklist

After every use

• Wipe down and return to the labelled position
• Note any visible damage and move that item to quarantine

Weekly

• Check the tooling used most heavily for tip rounding and die shoulder wear
• Confirm quarantined items are tagged and out of circulation

Monthly

• Straight-edge check on the long punches
• Review storage conditions for moisture
• Review whether any reground tooling needs recalibration of setup data

Before any angle-critical job

• Inspect the specific tooling set that job will use
• Verify the set is complete and matched

Frequently asked questions

How long does press brake tooling last? It depends on material, thickness, volume and handling, and there is no honest universal figure. Track your own tooling: record when each set is put into service and when a bend angle first requires adjustment to compensate. That gives you a service life figure based on your real conditions, which is the only one that is useful for planning.

Can I mix tooling from different sets to make up a length? You can, but expect inconsistent bends. Segments wear differently, so a mixed-length assembly has varying effective geometry across the part. If you must assemble a length from segments, keep the set matched and note the assembly so the same combination is used next time.

Does custom tooling need different care? The handling and storage principles are the same, but custom tooling usually has no replacement stock and a longer lead time. That argues for stricter quarantine discipline and for keeping at least one spare of any custom tool that a running job depends on.

Is rust on a die shoulder really a problem? Yes. Any change to the shoulder surface changes how the material rides through the bend, which changes the angle. Light surface rust that is removed and leaves no pitting may be acceptable; pitting is not.
