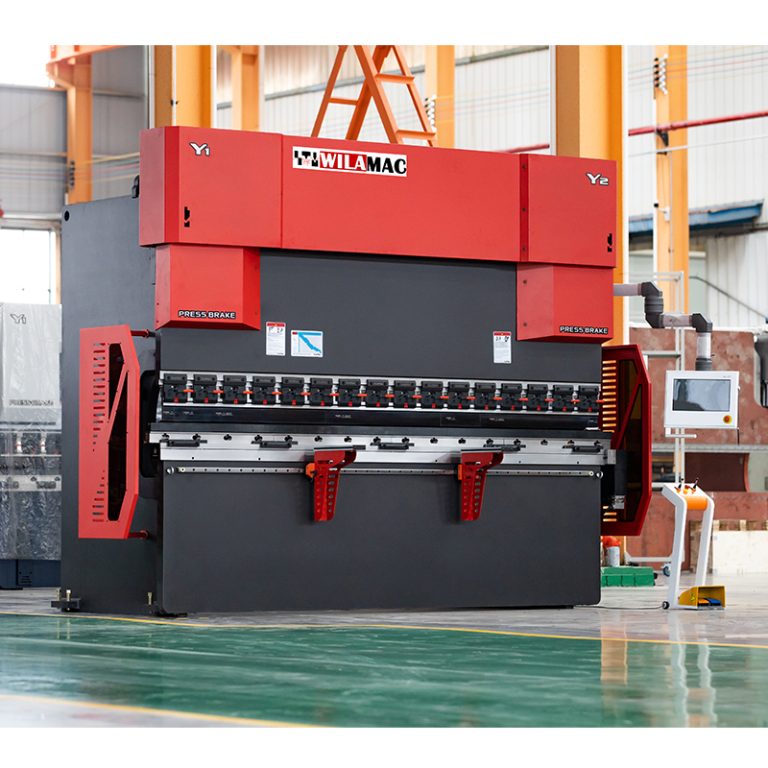

We67K-100t/3200 CNC Steel Plate Bending Machine with Da-53t Controller System
Model: WE67K-100T/3200 Bending Force: 1000 kN (100 Tons) Bending Length: 3200 mm CNC Controller: Delem DA-53T / DA-58T / DA-66T System Axis Configuration: 4+1 Axis (Y1, Y2, X, R + Mechanical Crowning) Hydraulic System: Electro-hydraulic proportional servo synchronization Certification: CE & ISO 9001 Certified
| Type | High Precision CNC Control: DA-53T controller with touch screen |
|---|---|
| Certification | ISO 9001:2008, CE |
| After-sales Service | 3-Year |
| Model | WE67K-100T/3200 |
|---|---|
| Nominal Pressure | 1000 kN (100 Tons) |
| Bending Length | 3200 mm |
| Distance Between Housings | 2600 mm |
| Throat Depth | 3200/400 mm |
| Axis Number | 4+1 Axis (Y1, Y2, X, R + V-Axis Crowning) |
| Max Open Height | 400 mm |
| CNC System | Delem DA-53T / DA-58T / DA-66T |
| Main Motor Power | 7.5 kW |
| Machine Weight | Approx. 7500 kg |
Why Choose WILAMAC Press Brake?

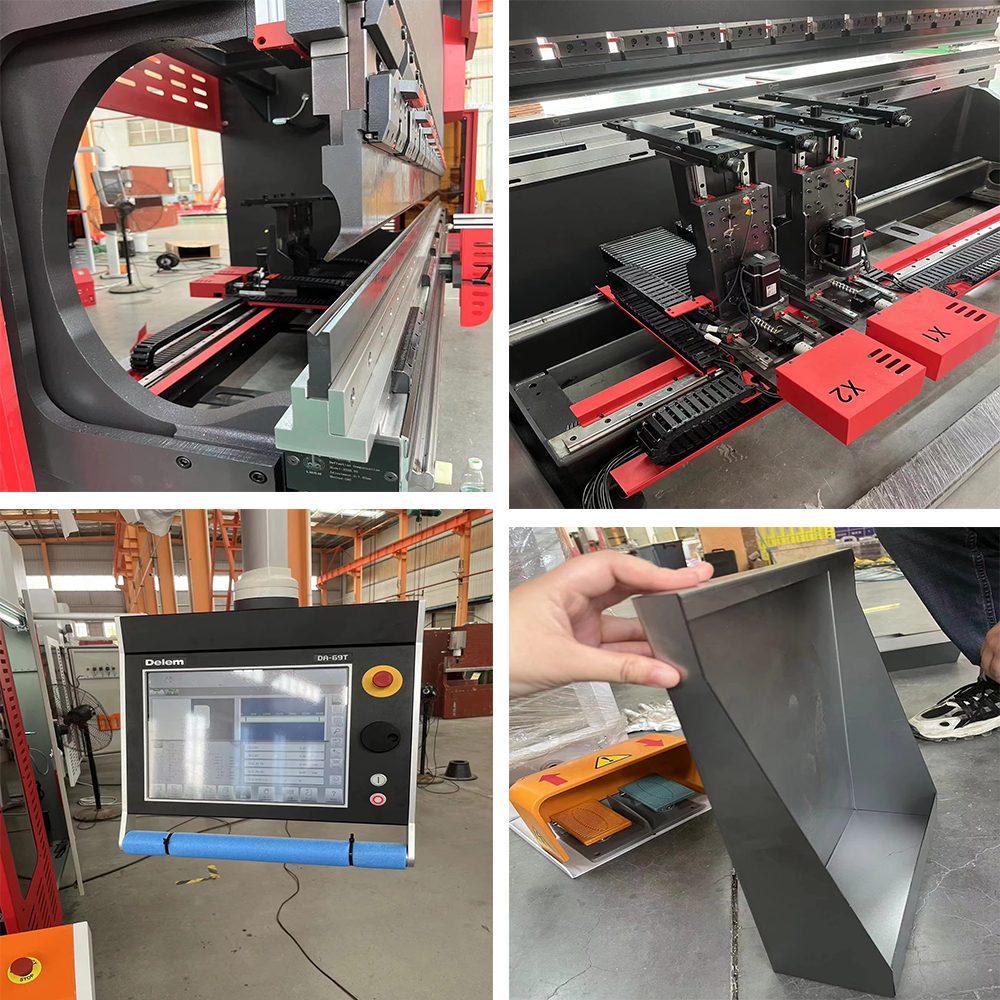

The WILAMAC WE67K Press Brake is a heavy-duty, high-precision electro-hydraulic CNC bending machine designed for accurate sheet metal processing， High Precision CNC Control: DA-53T controller with touch screen for real-time visualization and multi-axis control. Robust Steel Construction: Welded steel frame designed to handle heavy and repeated bending tasks. Advanced Safety Features: Equipped with safety guards, light curtains, and emergency stop button. Customizable Tooling: Standard tooling set can be customized: optional dies and punches available. Versatile Material Handling: Suitable for copper, aluminum, alloy, carbon steel, and stainless steel. Efficient Data Management: Software supports job data storage and USB import/export for quick setup. Precise Positioning: Motorized back gauge ensures accurate positioning of metal sheets. OEM and ODM Services: Manufacturer offers both OEM and ODM customization services.
