Fully Automatic Hydraulic Round Bar Cutting Machine

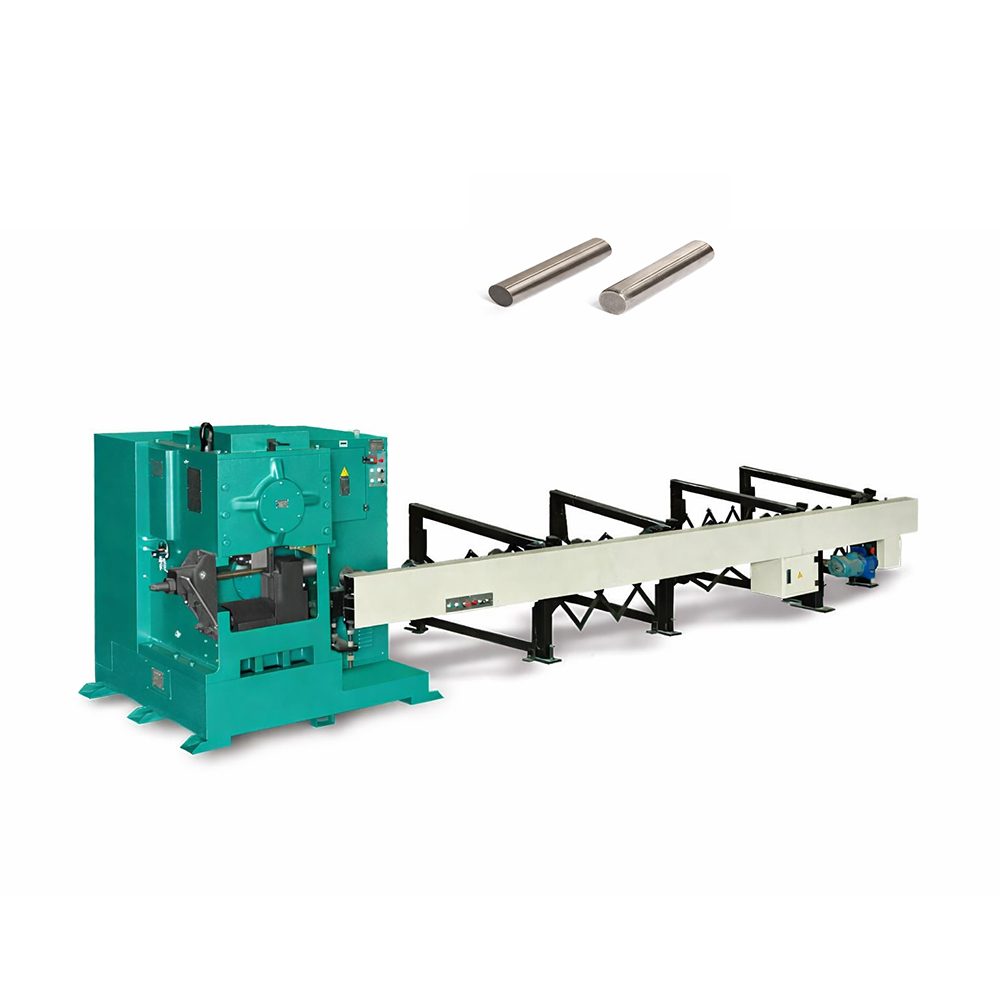

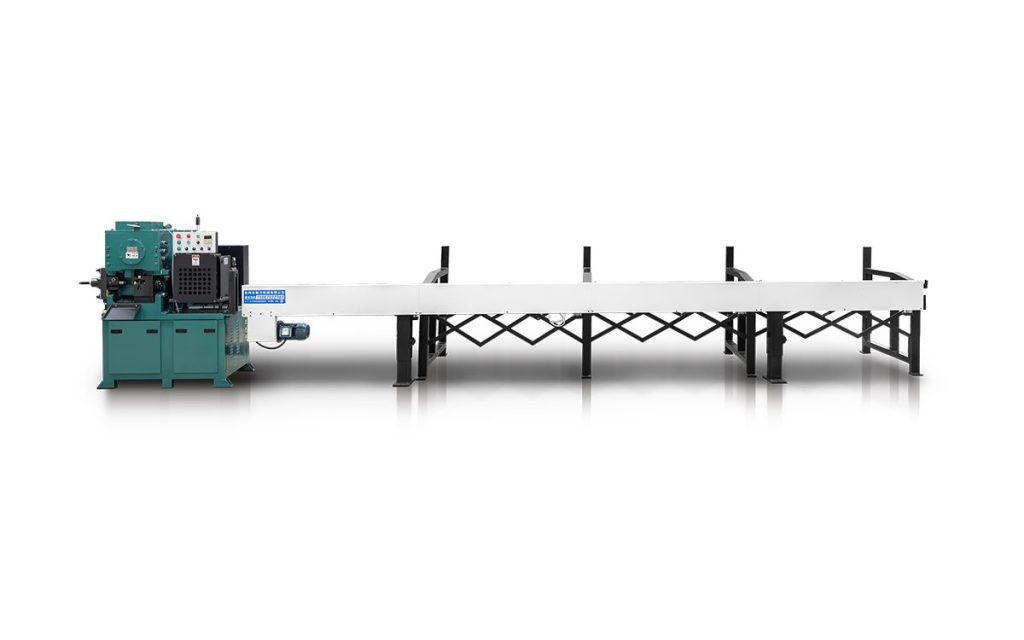

This is a hydraulic round bar shearing and cutting machine built around a powered bar magazine rather than a single-piece feed. Bar stock is loaded into the rack, the machine indexes it forward and shears it to length, so the operator sets the length once and then supervises rather than handling every cut. Cutting is by hydraulic shear, which gives a clean sheared face on steel round bar and keeps the cycle consistent across a full shift. It suits bar preparation ahead of forging, machining or heading, where you need a steady supply of cut-to-length blanks rather than a one-off cut. Tell us the bar diameter range, the material and the cut length tolerance you work to, and we will confirm the machine and the magazine arrangement before quoting.
| Machine Type | Hydraulic round bar shearing and cutting machine |
|---|---|
| Feed System | Powered bar magazine / automatic indexing |
| Cycle | Fully automatic |
| Drive | Hydraulic |
| Cutting Material | Steel round bar |
| Voltage | 220 V |
| Certification | CE, ISO9001 |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| After Warranty Service | Field maintenance and repair service |
| Place of Origin | China |
| Brand | WILAMAC |
| Minimum Order Quantity | 1 |
What an Automatic Round Bar Cutting Machine Changes
Cutting steel round bar by hand is not difficult; cutting it by hand for eight hours is. The cost sits in the handling — picking up a bar, measuring, cutting, stacking, repeating — not in the cut itself.

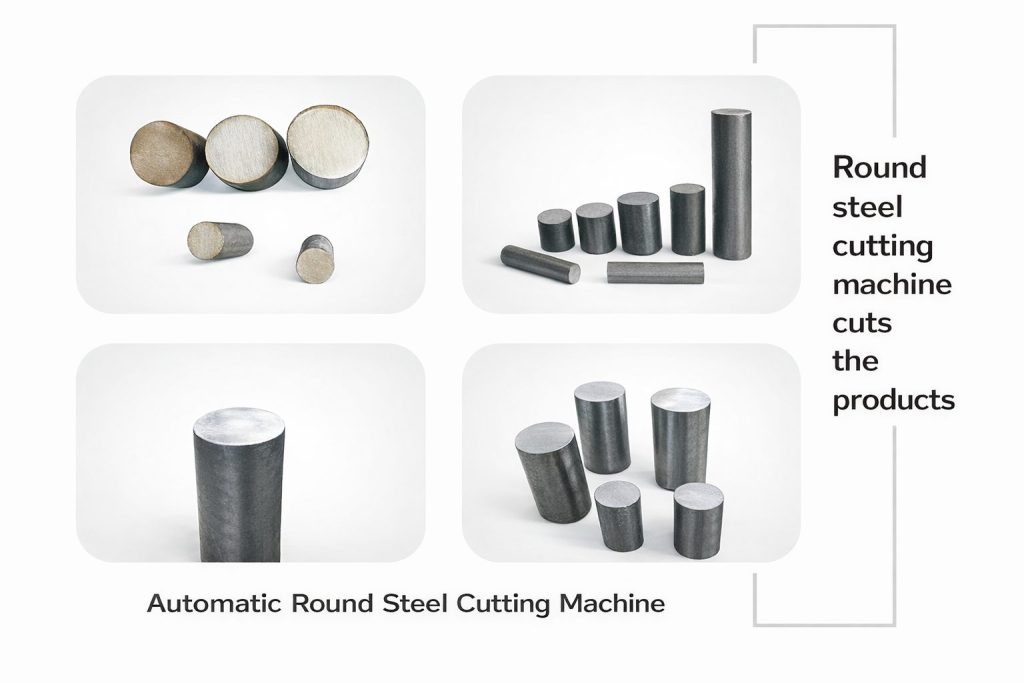

This machine moves that handling onto a powered magazine. Bar stock goes into the rack, the machine indexes each length forward to a set stop position and shears it, and the operator sets the length once. The result is a steady supply of cut-to-length blanks with consistent length, which matters most when the cut bar feeds a second operation such as forging, heading or a machining centre.
Hydraulic shearing is used rather than sawing because it is fast on bar stock and produces a sheared face that is normally good enough for the next operation. If your downstream process needs a machined or sawn face finish, say so when you enquire and we will confirm whether a shear is the right cutting method for your material.
Specifying a Round Bar Cutting Machine
The single most important number for a bar cutter is the bar diameter range, because it sets the shear force and the magazine size. Material grade matters as much as diameter: the same diameter in a higher-tensile steel needs more force than mild steel.
What to send us:
- Bar diameter range, in mm, minimum to maximum
- Material grade and whether it is hot rolled, cold drawn or bright bar
- Cut length range and the length tolerance you work to
- Output you need, in pieces per hour or tonnes per shift
- What happens downstream, so the cut face can be matched to the next operation
- Voltage and phase at your site
Send us those and we will confirm the machine size, the magazine arrangement and the control before quoting.
